Professional Displays for Restaurants & Bars in Thailand: Intel SDM-L and Dante AV Ultra

In restaurants, sports bars and entertainment venues across Phuket, Bangkok and Pattaya, screens run 12–18 hours a day. Muay Thai and UFC broadcasts, digital signage with menus and promotions, video walls in VIP areas — this is a workload consumer TVs were never designed for. After 6–12 months a consumer TV overheats, loses brightness and fails, and the manufacturer's warranty is already void because the device was used commercially.

Professional displays are a different category of equipment altogether. They are engineered for continuous operation, managed centrally and support modular expansion. In this article we explain how professional displays differ from consumer TVs, what the Intel SDM-L module brings to the table, and how the SDM-L + Dante AV Ultra combination changes the game for hospitality businesses in Thailand.

Consumer TV vs professional display: 7 key differences

• Duty cycle — a consumer TV is rated for 4–8 hours a day. A professional display runs 16/7 or 24/7 without overheating thanks to reinforced cooling.
• Brightness — a consumer TV outputs 200–350 nits, and in a sun-drenched Phuket venue the image washes out. Professional panels deliver 400–2,500 nits, readable even in direct sunlight.
• Orientation — a consumer TV cannot be mounted in portrait mode: the cooling is designed for landscape only. A professional display works in both orientations.
• Management — a consumer TV is controlled by a remote. A professional display is managed via RS-232, LAN or cloud platforms (Philips Wave, Panasonic, iiyama iiSignage). An IT manager can control hundreds of screens from a single laptop.
• Security — a professional display locks out buttons and the IR receiver so staff cannot change the channel.
• Video walls — ultra-thin bezels (1.8–3.5 mm) enable seamless video walls. Consumer TVs have 10–20 mm bezels.
• Warranty — a consumer TV loses its warranty when used commercially. A professional display comes with a 3-year B2B warranty, often including on-site service.

Intel SDM-L: the modular slot that turns a display into a platform

Intel Smart Display Module Large (SDM-L) is a modular slot standard developed by Intel for professional displays. Instead of an external media player or PC, you insert a compact module directly into the display chassis. The screen becomes a self-contained computing platform — no external boxes, no extra cables, no additional points of failure.

What can be installed in an SDM-L slot:

• Intel-based signage player — for playing advertising content, menus, promotions. Brands: Advantech, Axiomtek, GIGAIPC, Giada.
• Wolfvision Cynap interactive module — for meeting rooms and conference halls.
• ADTECHNO Dante AV Ultra receiver — for receiving 4K video over an IP network without an external decoder. This option turns a professional display into a full Dante endpoint.

The key advantage of SDM-L is modularity. The display panel lasts 7–10 years, while the computing module can be replaced after 3–4 years without removing the panel. This lowers total cost of ownership (TCO) and simplifies infrastructure upgrades.

SDM-L + Dante AV Ultra: display as a Dante endpoint

The ADTECHNO Smart Display Module is the world's first Dante AV Ultra receiver in the Intel SDM-L form factor. It slots into the SDM-L bay of a compatible display, and the screen itself becomes a Dante network endpoint. No external decoder, no wall box, no extra HDMI cable.

What this means for a restaurateur in Phuket or Bangkok:

• 4K UHD 60p 4:4:4 video over standard Cat6 cable — sports broadcasts in maximum quality.
• Video wall up to 5×5 (25 displays) without an external processor — modules synchronise with each other.
• Daisy-chain connection — signal passes from display to display, reducing cable runs.
• Powered via PoE or the display's SDM slot — just 12 W, no separate power outlet needed.
• Centralised control via Dante Controller, Dante Director or ADTECHNO Control Nexus — video routing changes in seconds, all in software.

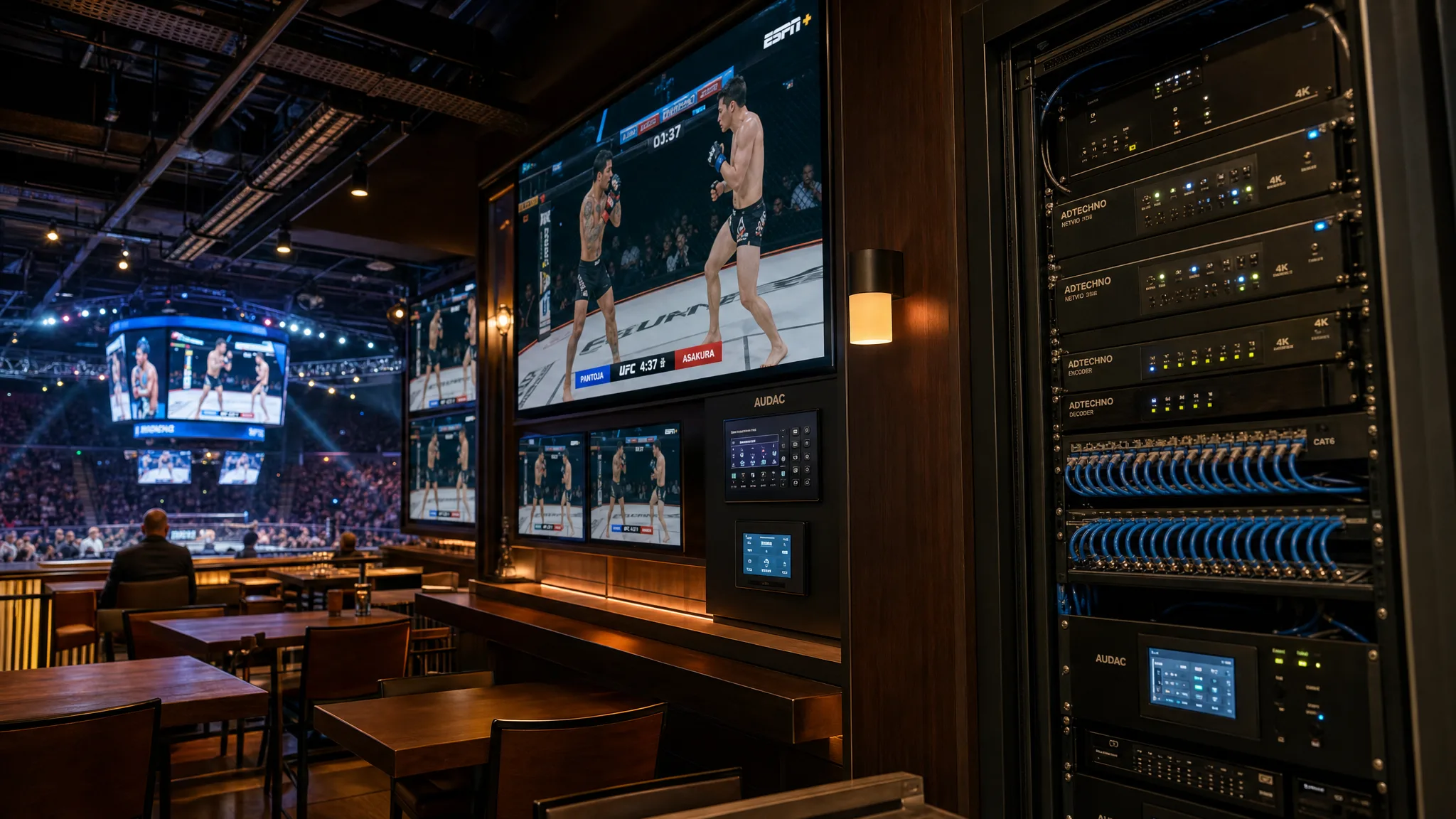

For a deep dive into the Dante AV Ultra + AUDAC Touch2 combination for multi-zone audio and video management, see our article "Dante AV Ultra + AUDAC Touch2: AV Systems for Sports Arenas in Thailand".

Professional displays with SDM-L available in Thailand

Several professional display brands with Intel SDM-L support are represented on the Thai market. All manufacturers listed below have distributors or offices in Thailand.

Panasonic — SQ1H, SQ2H, SQE2, EQ2, BQ1 series

• Screen sizes from 43 to 98 inches. SDM-S and SDM-L support.
• SQ series — 24/7 rated, anti-glare coating, built-in Android SoC.
• Panasonic Management (Thailand) has an office and showroom in Bangkok (Panasonic Smart Solution Center).
• Ideal for restaurants, hotels and sports bars that need reliable round-the-clock operation.

Philips (PPDS) — P-Line series

• P-Line — displays rated for 24/7 in demanding environments: transport hubs, restaurants, bars.
• Metal housing, advanced thermal management.
• Built-in SDM-L slot + Philips Wave cloud platform for remote management.
• PPDS has a partner network across Southeast Asia, including Thailand.

iiyama — 42, 52, 75 series

• Professional displays from 43 to 86 inches with Intel SDM-L slot.
• 18/7 and 24/7 rated, portrait and landscape orientation.
• iiSignage² platform for content management.
• FailOver — automatic switch to a backup source if the primary fails.
• Available in Thailand through international distributors.

Use cases for restaurants and bars in Phuket

Sports bar with live broadcasts

12–20 professional displays with SDM-L Dante AV Ultra modules. An ADTECHNO encoder takes the signal from a satellite receiver and pushes the 4K stream onto the network. Every screen receives the picture over Cat6 — no HDMI splitters or matrices. Via the Control Nexus an operator switches content with one button: "Football", "UFC", "Intermission — menu & ads".

Restaurant with digital signage

4–6 displays in portrait orientation at the entrance and throughout the dining area. An SDM-L signage player module shows the electronic menu, daily specials and partner advertising. Content updates are pushed remotely via the cloud platform (Philips Wave, iiSignage). No dedicated PC needed at each screen.

VIP area in a restaurant or hotel

A 2×2 or 3×3 video wall made of professional panels with ultra-thin bezels. SDM-L Dante AV Ultra modules synchronise the image across panels without an external video processor. The result — a stunning visual impact with minimal equipment.

Cost of switching to professional displays

A professional display costs 1.5–3× more than a consumer TV of the same size. But over a 5-year horizon the total cost of ownership (TCO) is lower:

• Consumer TV 55" — replacement every 12–18 months. Over 5 years: 3–4 replacements + business downtime.
• Professional display 55" — runs 5–7 years without replacement. 3-year warranty with on-site service.
• SDM-L module is replaced separately from the panel — upgrade the "brain" without removing the screen.

Summary

Professional displays with Intel SDM-L are not an "expensive TV" — they are an investment in stable infrastructure for a restaurant, bar or entertainment complex. The modular SDM-L slot turns every screen into a Dante AV Ultra endpoint, a signage player or an interactive panel — without external boxes or extra cables.
